Jiangsu Tianwei Welding Industry Co., LTD

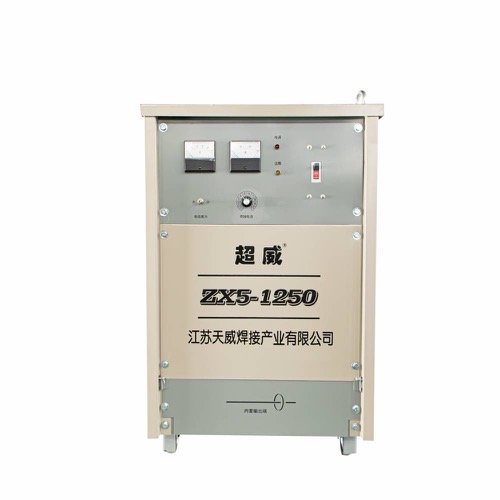

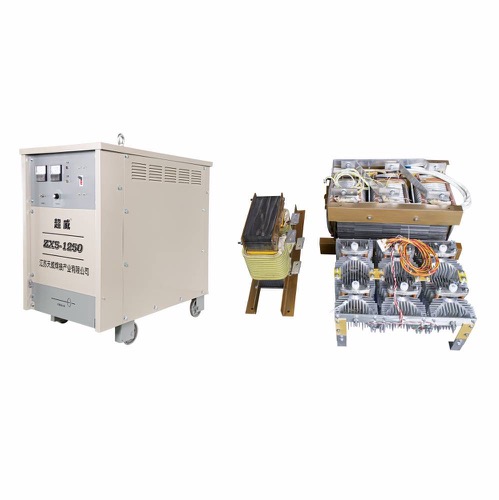

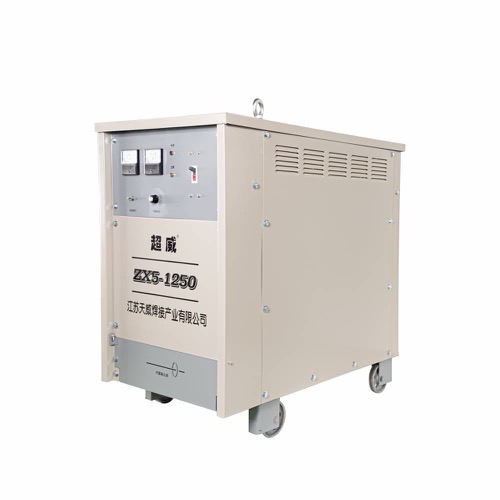

ZX5 Series SCR Rectifier Thyristor Carbon Arc Air Gouging Welder For Groove Preparation

Apply to groove preparation, also can be DC arc welding; Three-phase full-controlled bridge makes a good character of dynamic and static; Wide range of current regulation, good stability of electric arc; Self-compensating to electric fluctuations.

Product name:Thyristor Carbon Arc Air Gouging Welder

Brand Name:Tianwei

Color:White

Pilot Arc Current:80-1600A

Dimensions:725*485*870(ZX5-630)

Arc Current:630/1000/1250/1600

Rated input current:65-158A

Voltage:380V

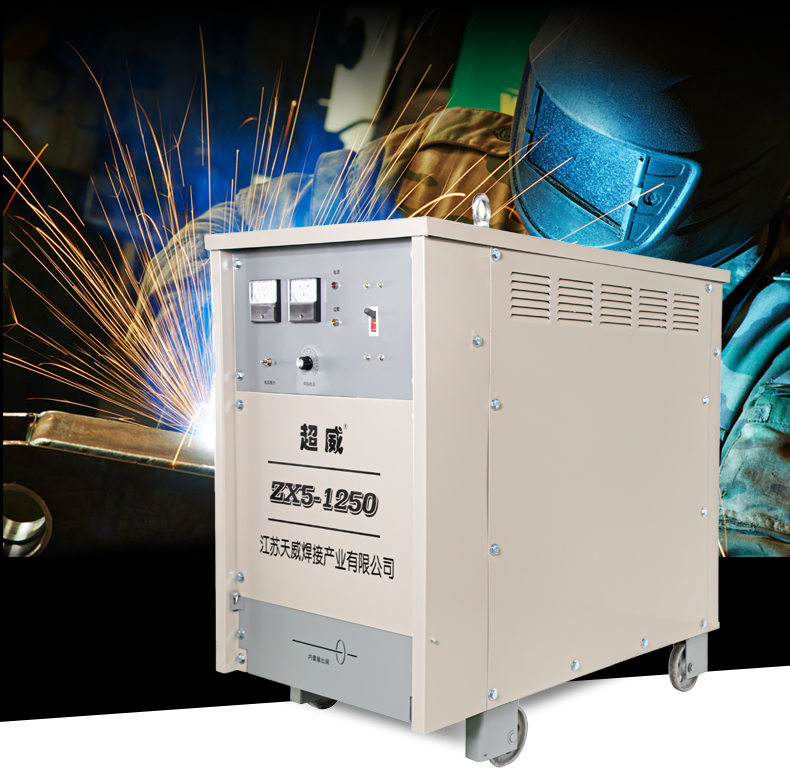

详情1.png 详情2-1.jpg 详情2-2.png

Product Description

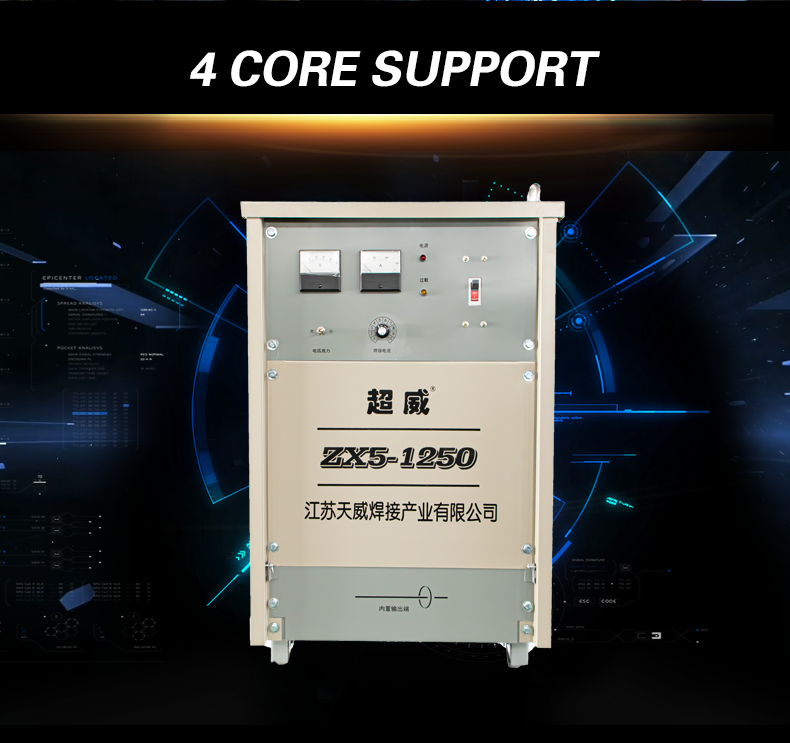

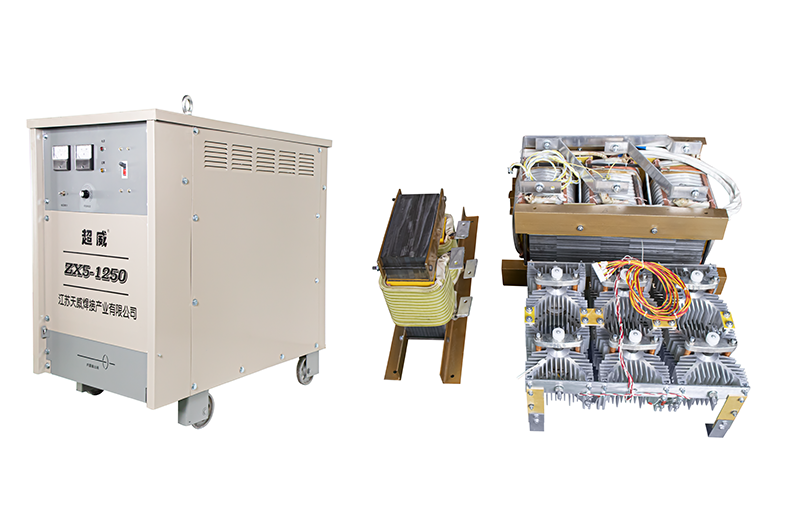

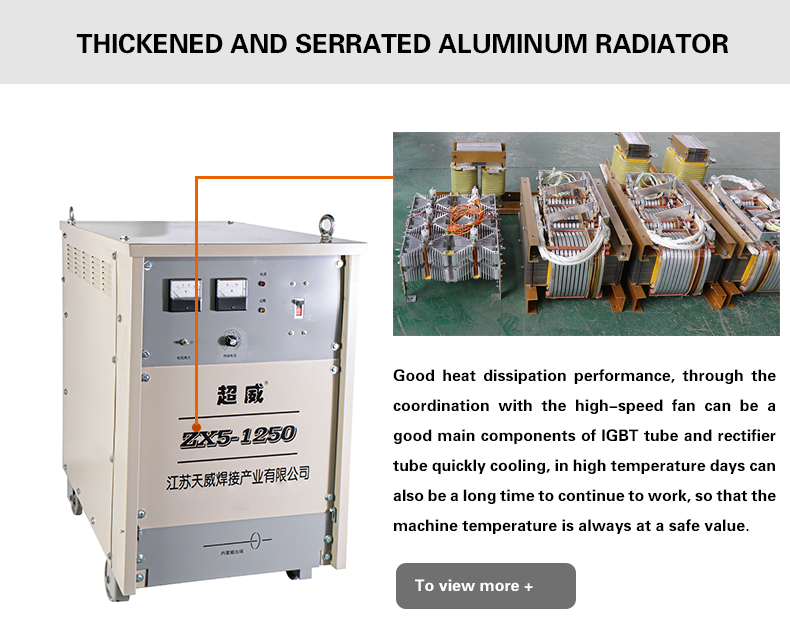

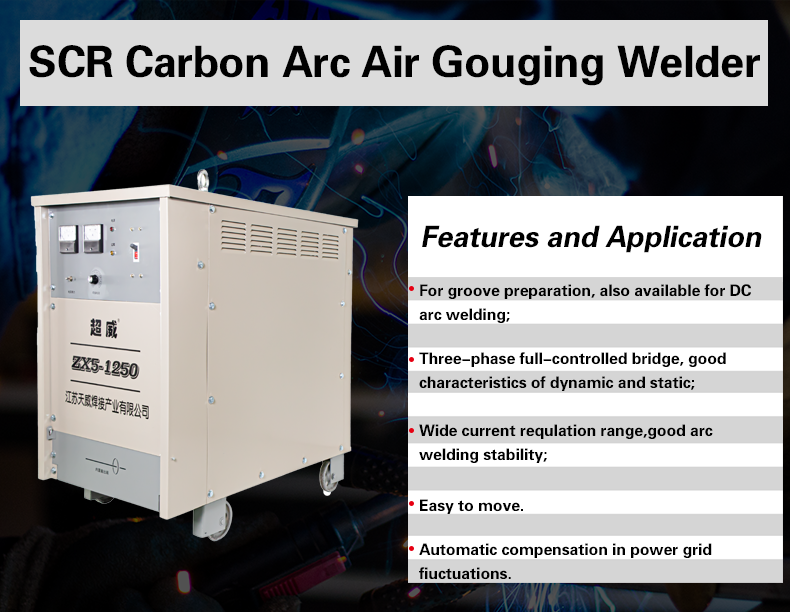

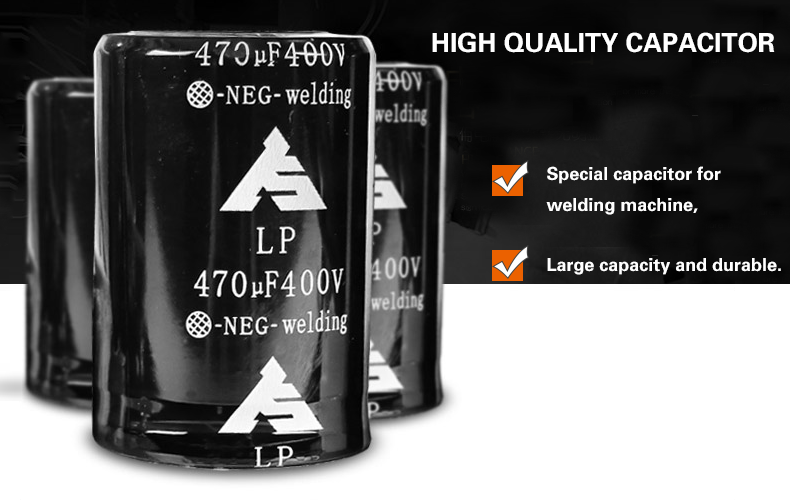

详情4.png 详情5.png 详情6.png 详情7.png 详情8.png 详情9.png

Why choose us ？


Apply to groove preparation, also can be DC arc welding;

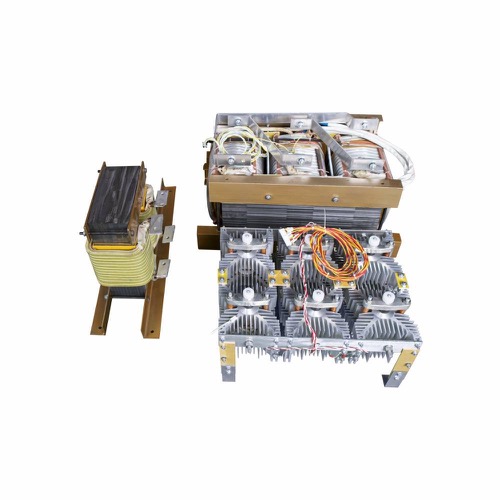

Three-phase full-controlled bridge makes a good character of dynamic and static;

Wide range of current regulation, good stability of electric arc;

Self-compensating to electric fluctuations.

Specification
Model Specification	ZX5 -630	ZX5-1000	ZX5-1250	ZX5-1600
Rated Input Voltage	380V/3N 50Hz	380V/3N 50Hz	380V/3N 50Hz	380V/3N 50Hz
Rated Input Current(A)	65	103	129	158
No-load Voltage(V)	65	65	65	65
Rated Output Current(A)	630	1000	1250	1600
Current Range(A)	80~630	130~1000	200~1250	200~1600
For Wire Diameter(mm)	6~10	7~14	8~16	8~16
Rated Duty Cycle	60	60	60	60

NIL

Recommended

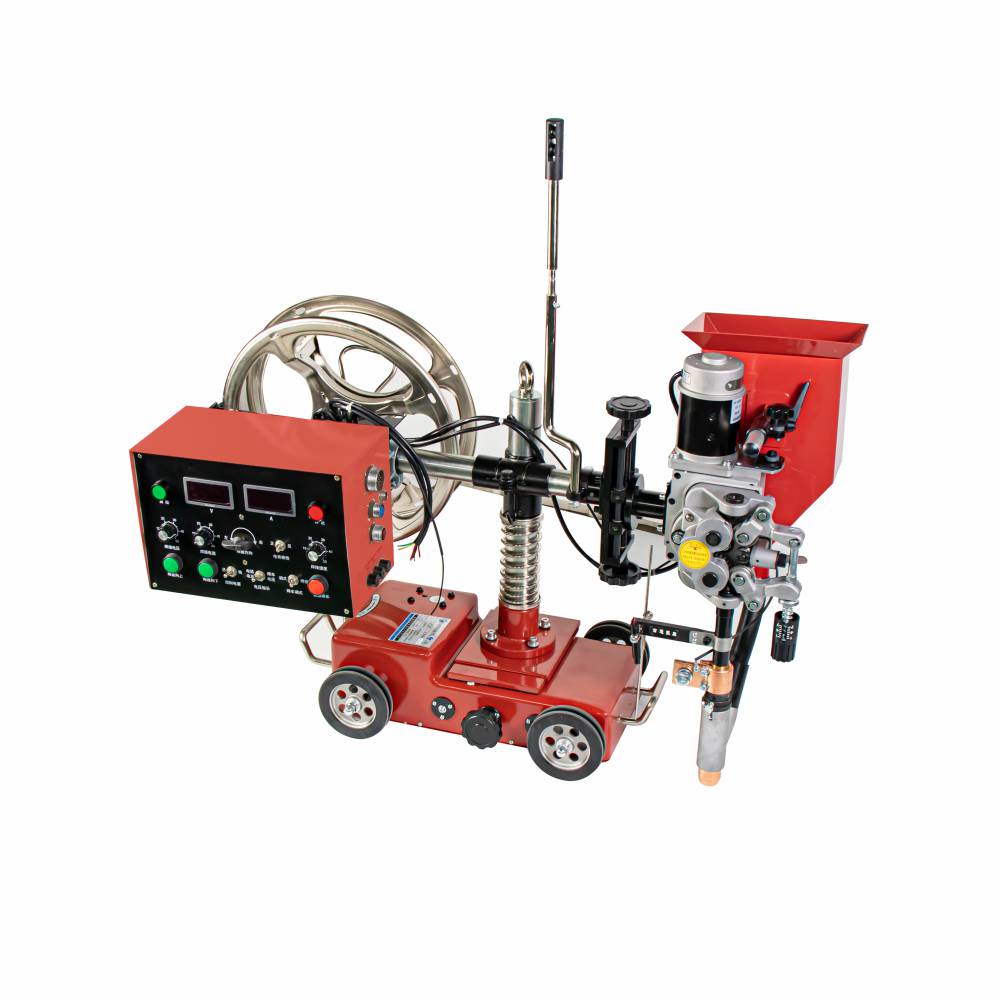

Price List Safety Submerged Arc Welder Trolley Other Welding Equipment
